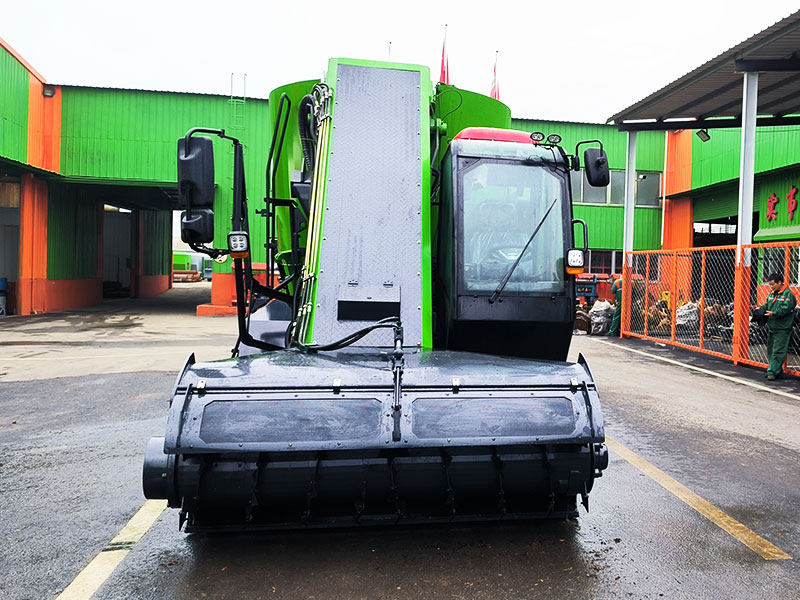

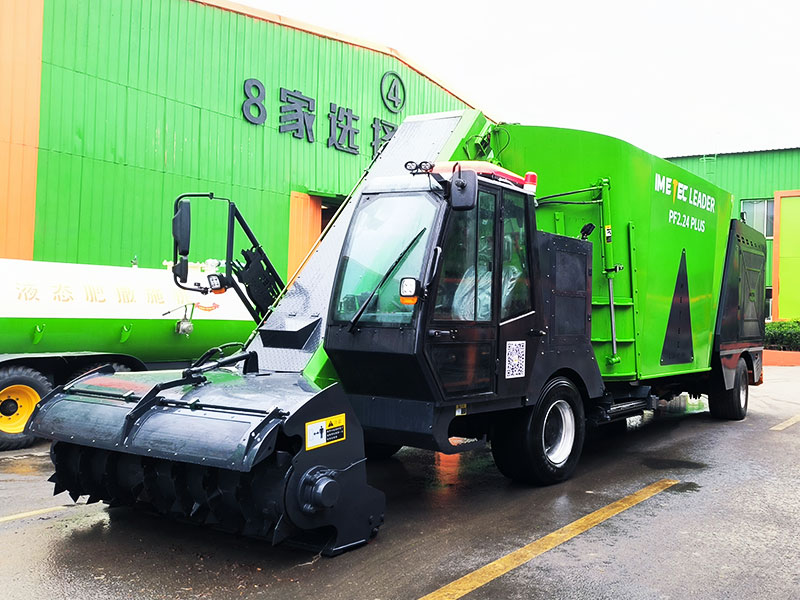

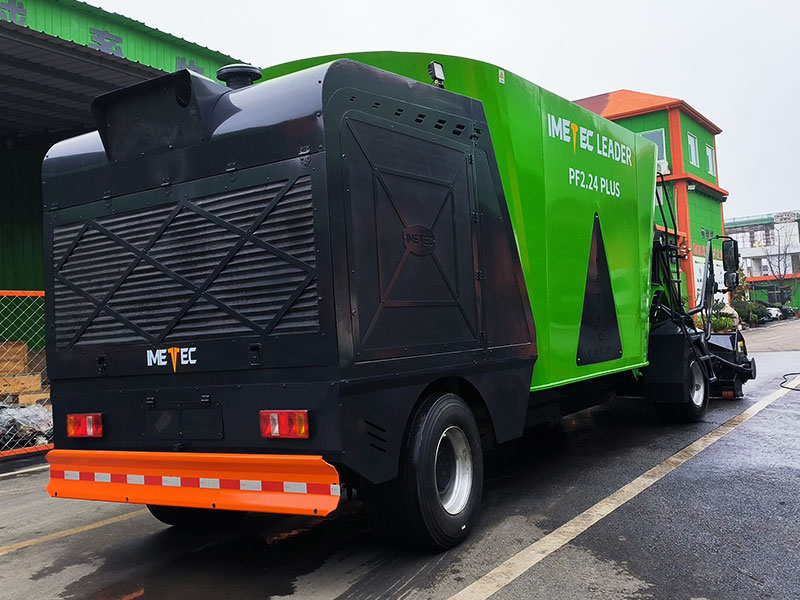

Self propelled TMR Feed Mixer

Machine

Model

9QJS-30CBM

Shape

own

Brand

IMETEC

Power

Engine Efficiency

205kw power range 280 hp

Engine brand

American Standard Cummins

Drive type

Hydraulic

Driving Form

FOUR-wheel drive

Axle Brand

Joint venture or Carraro

Steering

Hydraulic assist

Steering mode

Four-wheel steering, can travel diagonally

Number of tires

4

Tire model

435/50R19.5

Driving mode

Hydraulic

Traveling speed of the whole machine

2-30Km/h

Mixing

Number of auger

2

Augers material and thickness

Q355R manganese plate (or NM400 wear-resistant   plate optional)16mm

stirring power

Hydraulic

Number of blades

18

Brand of mixing reducer

Comer

Tank material and thickness

Q355R manganese plate (or NM400 wear-resistant   plate optional) 10mm

Mixing uniformity

Pennsylvania Screening Test

collecting

Material and thickness of the feeding drum

Stainless steel/3mm

Blade thickness

5mm

speed

160-240r/min

grabbing height

 4m

Feeding way

Belt (with stopper strip)

Hydraulic

Hydraulic brand：

Danfoss-Denmark

Driving power

Electronic variable control

Mixing    hydraulic power

Electronic variable control

Reclaim hydraulic power

Electronic variable control

Weighing

Brand

Avery Weigh-tronix(USA)/DG(Italy)

Method

4-point support

Accuracy

1/3000

Protection level

IP67

Number of sensors

4

Maximum sensor range

30T

Complete Machine

Grease filling

Fully automatic

Overall dimensions

≥10500*2450*3500

mm
