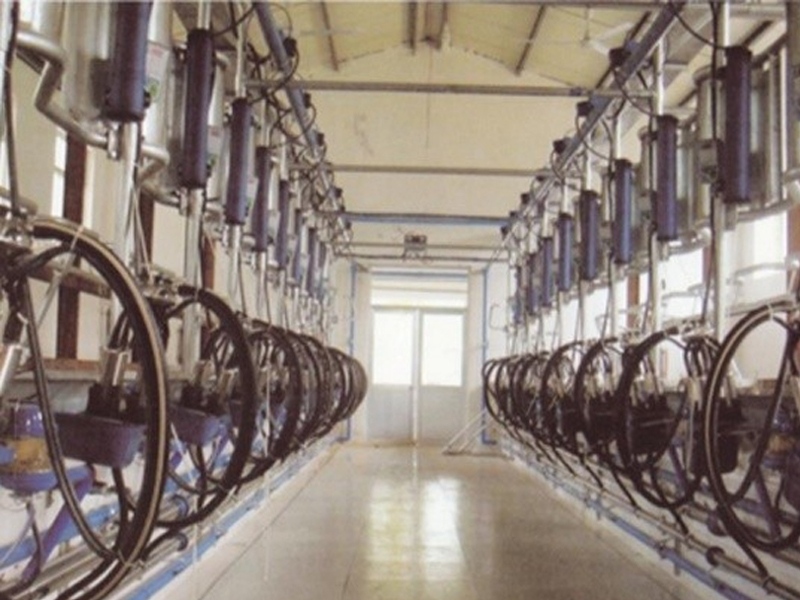

Electronic Measuring Fishbone TypeAuto-decupping Milking Parlor

  • Category: Ranch supporting facilities
  • QR code:
  • The fishbone platform is composed of independent components and is equipped with a fexible suspension structure: each cowshed has a column at the end. asturdy wallfixing frame and an adjustable arch frame, and a support frame: one support for every two cow positions,easy and convenient to insta, with front andrear guardrals selected for diferent degrees ofautomation. The pit is made ofstainless steel or galvanized sheet and fixed with bolts or cement, There are threoptions for door contro: manua. vacuym drven, and compressed air drven.The choice of milking automation level mets diferent needs and electronic measur

    ing devices, auantitative feeding devices, and pasture management svstems can be installed


Product details:

Applicable Milking Parlor size: 1x4-2x40

Center distance of cow position: 1150mmOperating tunnel bottom width: 2300mmOperating tunnel top width: 2000mm

Operating tunnel depth: 800mm

Operation tunnel length:

Number of cow positions x1150+2100mmCow standing platform width: 1200 (± 50) mm

 name

 parameter

 quantity

2*10 fish bone   scaffolding system

Hot-dip   galvanizing + stainless steel livestock positioning frame

1

Fishbone cylinder

/

4

Cylinder control

/

2

 stainless steel pipeline

SUS304-75mm*   double wire

2

Water supply PVC   vacuum pipe

90MM

1

Intelligent   cleaning system

 intelligence CIP

1

 milk pump

ABB2.2KW

2

 milk filter

SUS30490*2

2

Milk receiving   tank

SUS304-150L

2

 Root's vacuum pump

4M

2

Balanced filter   tank

SUS304-100L

2

 converter motor

7.5KW

2

ABB frequency   conversion control

7.5KW

1

 sensor

0-100 kPa

2

 vacuum governor

3,600 litres

1

 clawpiece

300CC-PPSU

25

Silicone milk   lining

SIP-15(10000)

25

Silicone milk tube

SP-P16

25

Silicone cleaning   tube

SP-P14

25

Silicone pulsator   tube

SP-DP8*2

25

Electronic milk   meter

Afi-milk meter

25

Milk

AFi-MPC

25

The de-coupled   cylinder

SI-40

25

Electronic pulse   generator

LE30

25

 electric control cabinet

SP-ABB2*20

1

 helical-lobe compressor

4KW

2

 air drying machine

1M3

1

Air storage tank

1M3

1

Grade 4 air filter

1M3

1
